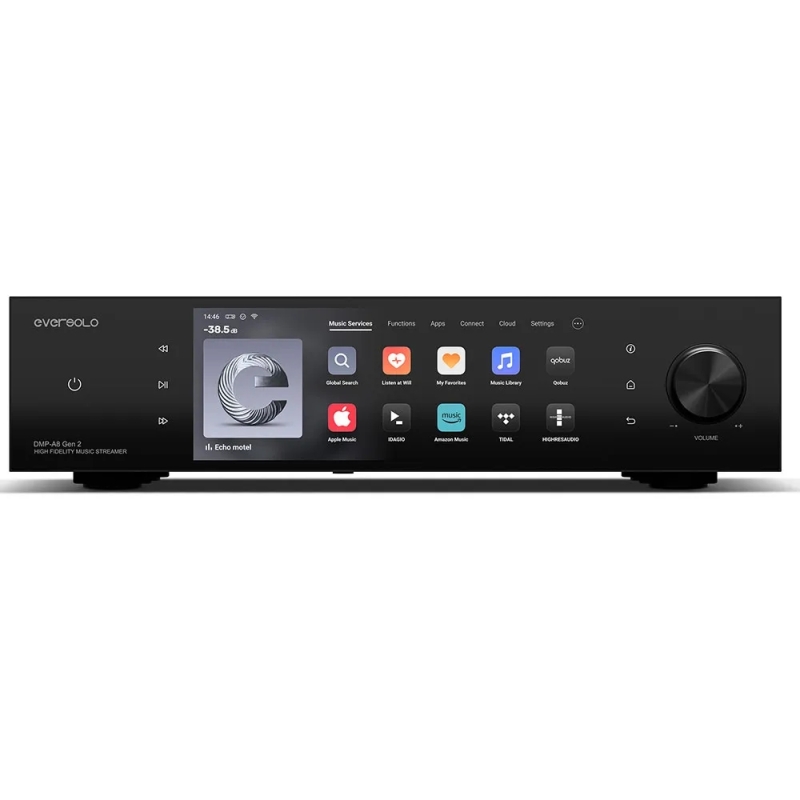

EverSolo DMP-A8 Gen. 2

Processor: Octa-Core processor

Memory: 8 GB DDR5

Storage: 64 GB eMMC

SSD Support: M. 2 NVMe PCIe 3.0, 2280 form factor, supporting SSDs up to 8 TB

LCD Touchscreen: 8.6-inch

DAC Chips: AK4499EXEQ + AK4191EQ

Audio Engine: Eversolo AuralEngine

Op-Amp: OPA1612

Power Supply: High-quality, low-noise dual power supply with separate linear and digital power sections

Clocks: Dual Ultra-Low Phase-Noise Clocks

RJ-45: 10/100/1000Mbps

Wi-Fi: Dual-band Wi-Fi 6 (2.4G + 5G)

Streaming Services: TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio, Paradise, Deezer, SoundCloud, Presto Music, Apple Music

Streaming Protocols: Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA/UPnP, Network Audio Adapter

SFP module: Supports single-mode single-fiber, single-mode dual-fiber optical modules, and SFP copper Ethernet modules (sold separately)

Bluetooth: BT 5.4

USB compatibility: Windows 10/11, macOS, Android, and iOS

USB Audio Output support: up to stereo DSD512 and PCM 768kHz/32bit

Coaxial/Optical input support: up to stereo PCM 192kHz/24bit and DSD64 via DoP

AES/EBU output support: up to stereo PCM 192kHz/24bit

Analog Inputs: One pair of XLR balanced and RCA single-ended

Input range: RCA maximum 2.1 Vrms; XLR maximum 4.2 Vrms

IIS Output support: up to stereo Native DSD512 and PCM 768kHz/32bit (compatible only with UAC-compliant USB DACs)

USB Audio Input support: up to stereo Native DSD512 and PCM 768kHz/32bit

HDMI ARC/eARC support: up to stereo PCM 192 kHz/24-bit and DoP64

Analog Outputs: XLR balanced + RCA pre-output

Output Level XLR: 4.2 V

Frequency Response XLR/RCA: 20 Hz-20 kHz, +/-0.25 dB

THD+N XLR: 0.000075% (-122 dB)

Dynamic Range XLR: >129 dB

SNR XLR: >129 dB

Crosstalk XLR: >133 dB

Output Level RCA: 2.1 V

THD+N RCA: 0.000086% (-121 dB)

Dynamic Range RCA: >127 dB

SNR RCA: >127 dB

Crosstalk RCA: >131 dB

Control: On-screen Touch Control, Eversolo Control, and Remote Control

Power Supply Voltage: AC 110-240 V, 50/60Hz

Power Consumption: 30 W

Dimensions: 388 × 265 × 88 mm (L × W × H)

Package Contents: Remote Control × 1, Power Cable × 1, Product Manual × 1

Net Weight: 5.25 kg

Gross Weight: 7.7 kg

Chassis Material: Aerospace-grade aluminum

PCM Support: 768kHz/32bit

DSD Support: 512

Audio Upsampling: up to 16×

DSP EQ Adjustment Range: 3.51Hz-20000Hz

Adjustable Crossover Frequency: 40-500 Hz

Preamplifier Gain: up to +10dB
