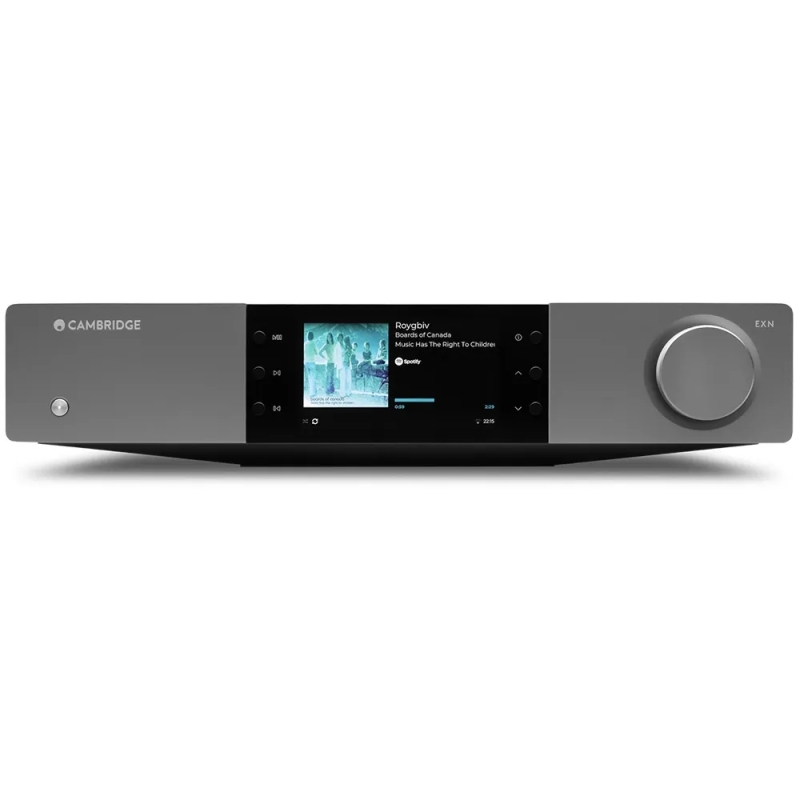

Cambridge Audio EXN 100

DAC: ESS ES9028Q2M

Preamp Mode: Yes

StreamMagic Version: Gen 4

Display Screen: 4.76″ IPS TFT – 1280 x 569

USB Drive Input: 1 x USB 2.0

S/PDIF TOSLINK Input: 1

S/PDIF Coaxial Input: 1

Asynchronous USB Input: 1

Bluetooth: 5.0 with aptX HD

HDMI ARC Input: 1 (eARC compatible)

Analogue RCA Outputs: 1 Pair

S/PDIF Output: 1

TOSLink Output: 1

Balanced XLR Output: 1 Pair

S/PDIF TOSLink Optical: 16/24bit 32-96kHz PCM, DoP64

S/PDIF Coaxial: 16/24bit 32-192kHz PCM, DoP64

HDMI eARC: PCM up to 24bit/192kHz

Local USB Media: PCM up to 32-bit 768kHz, DSD up to x512, File system support FAT32, NTFS, Ext2/3/4, ExFAT

USB Audio: PCM up to 32-bit 768kHz, DSD up to x512

Bluetooth: 5.0 A2DP/AVRCP supporting SBC, aptX and aptX HD codecs

UPnP: PCM up to 32bit/768kHz

Internet Radio: Yes

Tidal Connect: Yes

Spotify Connect: Yes

Qobuz: Yes

Deezer: Yes

Amazon Music: Yes (via Google Cast)

Google Cast: Yes

AirPlay 2: Yes

Roon Ready: Yes

Audio Formats: ALAC, WAV, FLAC, AIFF, DSD (x512), WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis

Ethernet: IEEE 802.3, 10 Base-T or 100 Base-T

WI-FI: IEEE 802.11 a/b/g/n/ac (2.4GHz / 5GHz)

RS232 Control: Yes

THD @ 1kHz 0dBFs: < 0.0005 %

Frequency Response: 20Hz-20kHz +/- 0.1dB

Crosstalk @1kHz: < -120dB

Signal to Noise Ratio (Ref 1W): > 120dBr

Bass / Treble Controls: Yes (Advanced DSP features)

Max Power Consumption: 30W

Standby Power Consumption: Network Standby: >2W ; Eco mode: <0.5W

Dimensions (W x H x D): 430 x 90 x 305mm

Weight: 4.1kg
