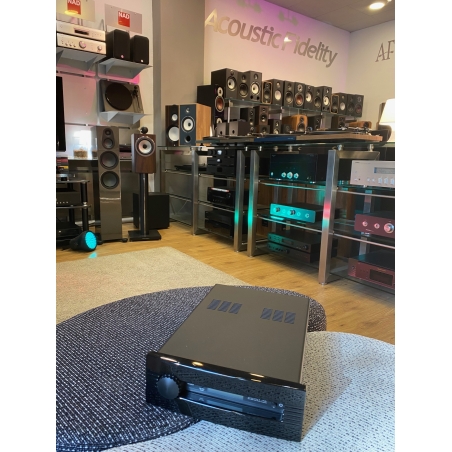

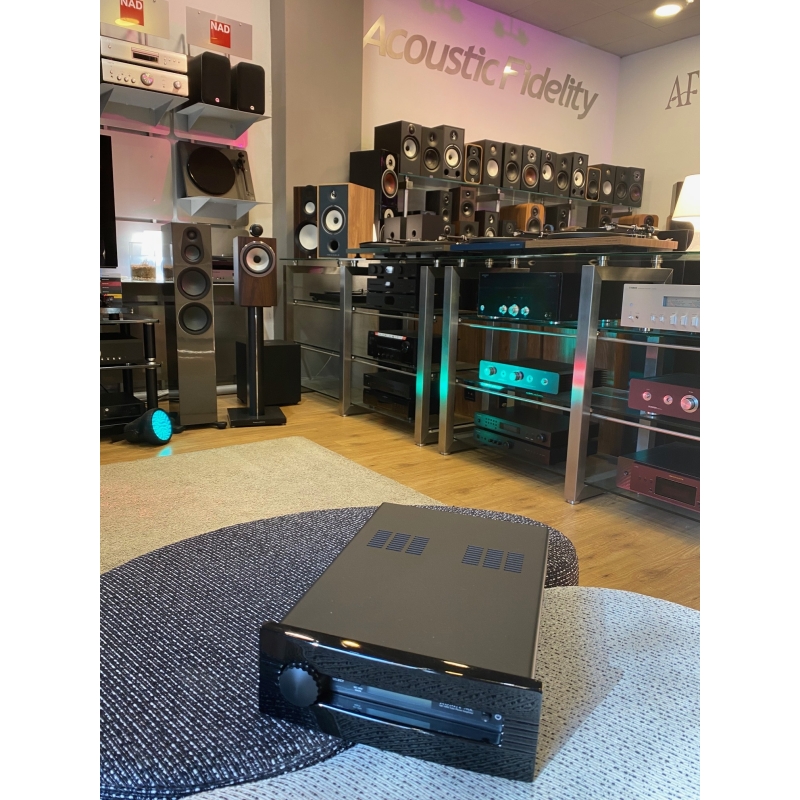

Synthesis Roma 79DC TUBE PHONO Stage MM-MC

Technical Specifications:

• Input Stage (1 channel): 1 x 12AX7/ECC83 valve for MM, ultralow noise JFET for MC
• Output Stage (1 channel): 1/2 x 12AU7/ECC82 valve
• Frequency Response: 20Hz - 20KHz, ±1 dB
• Gain:
  • MM: 40 dB
  • MC: 60 dB
  • MC+: 65 dB
• Signal-to-Noise Ratio (S/N):

  • 80 dB for MM (A-weighted)

  • 70 dB for MC (A-weighted)

• Cartridge Load (selectable via front knob):
  • MM type: 47 KOhm
  • Capacitance: 47, 100, 150, 200, 270, 320, 370, 420 pF
  • MC type: 100 pF
  • Impedance: 22, 33, 50, 75, 100, 150, 330, 1000 Ohm
• Output Level: >2V RMS
• Output Impedance: <500 Ohm
• Dimensions (W x D x H): 260 x 380 x 95 mm
• Weight: 5 kg
