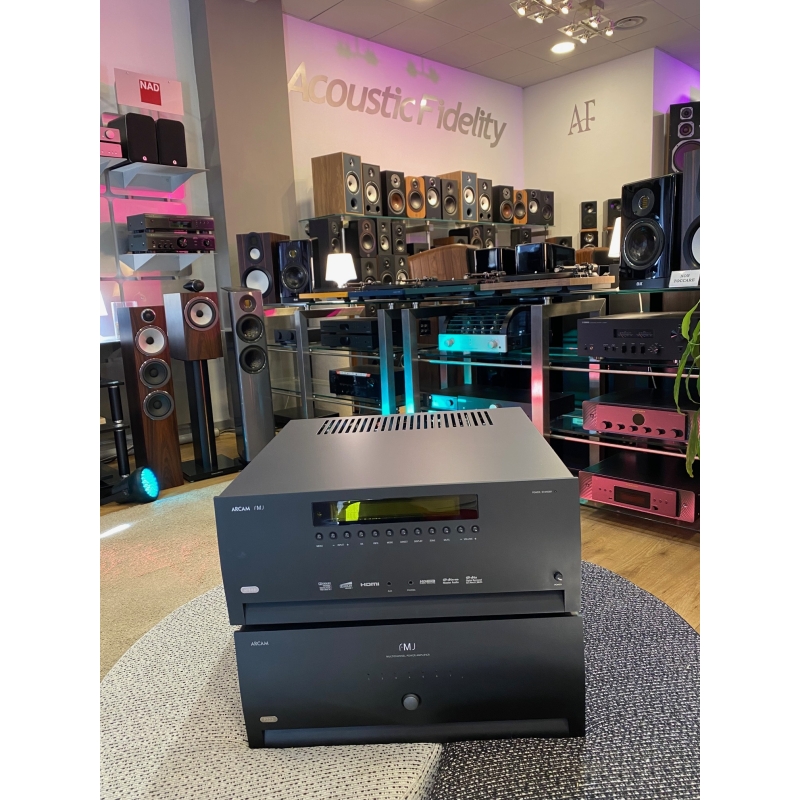

Arcam FMJ AV888 + Arcam FMJ P777

Analogue Audio

• Audiophile quality components for best sound quality
• Multi-channel 7.1 analogue input for DVD-A or SACD sources
• Stereo direct mode bypasses and disables all digital processing for 2 channel analogue sources
• 9 stereo analogue inputs (including one MM phono input & front 3.5mm AUX input)
• Zone 2 stereo audio, from analogue inputs (Source and volume control independent from main zone)
• Zone 3 stereo audio, from analogue inputs, linked to Zone 2, volume control independent
• Support for iPod via Arcam rLead / rDock (independent of RS232 connection)

Digital Audio

• State of the art Analog Devices ADSP-21366 & ADSP-21367 DSPs for surround decoding
• Wolfson 8741 high end 24bit 192kHz audio DACs
• Crystal Semiconductor stereo ADC and precision electronic volume controls
• Burr Brown DRV134 Balanced line drivers
• Dolby TrueHD, Dolby Digital+, Dolby Digital EX, Dolby Pro Logic IIx, DTS-HD Master Audio*
• DTS High Resolution Audio, DTS-ES Discrete, DTS-ES Matrix, DTS96/24, DTS Neo:6**
• Dolby Volume gain management and Tonal correction processing*
• Dolby Volume processing for balancing of program material gain and tonal balance
• Adjustable crossover switching 40Hz, 60Hz, 80Hz, 100Hz, 120Hz, 150Hz
• 8 digital inputs 4 rear optical, 3 co-axial, 1 front 3.5mm optical AUX input
• Global audio delay, adjustable from 0-1000 milliseconds, to compensate for video processing delays in digital displays and sources with auto lip-sync for compatible displays

Video

• 5 HDMI inputs (up to 1080p, Deep Colour)
• 2 HDMI outputs (up to 1080p, Deep Colour)
• 5 Component inputs, one monitor output (up to 1080i)
• 5 S-video inputs, one monitor output, 2 tape outputs
• 5 Composite video inputs, one monitor output, 2 tape outputs
• Full video up/down conversion & frame rate conversion of all inputs where technically allowed
• Video enhancements (per input): Edge enhancement, Mosquito noise reduction, Random noise reduction, Block noise reduction

• Audio

  • 7 x 150 watts per channel (8 ohms, 20Hz-20kHz, all channels driven)
  • 7 x 230 watts per channel (4 ohms, 20Hz-20kHz, all channels driven)
  • Peak output current +/- 30amps per channel
  • Modular construction with seven independent and fully isolated channels
  • Four Sanken heavy duty bi-polar output transistors per channel
  • Advanced current feedback design with high slew rate and very low distortion at all audio frequencies
  • Predominantly aluminium chassis and casework for best sound quality
  • Comprehensive protection circuitry
    • -  DC offset protection
    • -  VI limiting on each output stage
    • -  Software controlled thermostatic fan
    • -  Over temperature protection

  Inputs and Outputs

  • Balanced (XLR) input connections
  • Unbalanced (RCA) inputs with “loop through” output
  • 12v Trigger (3.5mm mono jack) input for standby control
