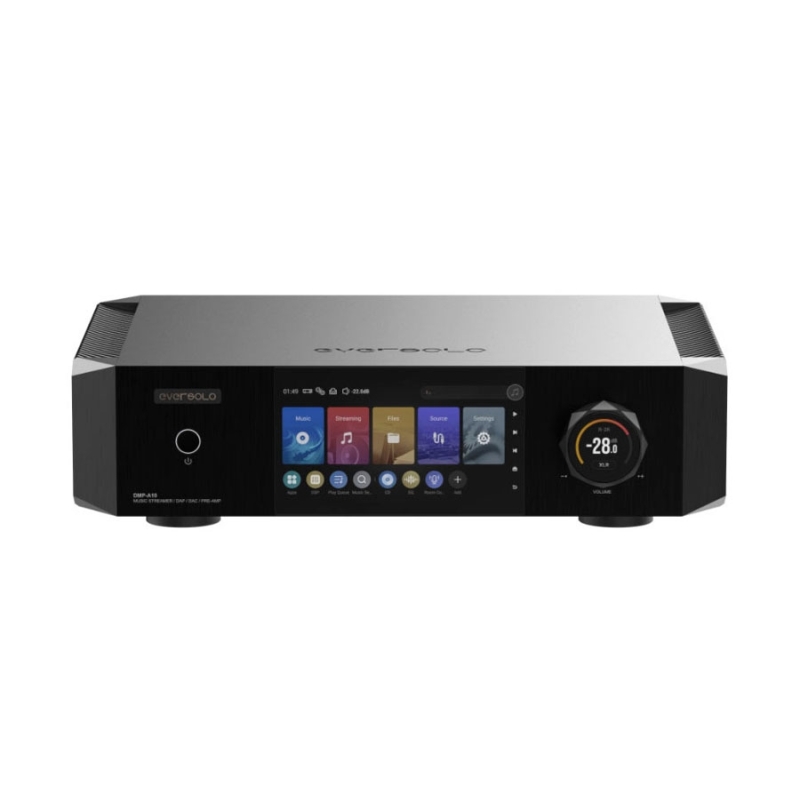

EverSolo DMP-A10

Model: EVERSOLO DMP-A10

Display: 6.5* LCD touchscreen

Internal Memory: 4GDDRA +64GeMMC

DAC:ES9039 PRO

Audio Processor: XMOS XU316|

Streaming: Roon Ready (Certification in progress) Squeezelite, DLNA. Tidal Connect etc.

Bluetooth Audio Input: B5.0, support SBC/AAC

Isolation USB-B Audio Input: Supports Windows (10, 11), Android, OS. Support up to stereo DSD512, PCM| 768KHz 32Bit.

Optical/Coaxial Audio Input * 2: Support up to stereo PCM 192KHz| 24Bit, Dop64|

XLR Output Audio Characteristics: Output level: 4.2V

Frequency response: 20Hz-20KHz(÷0.15dB)

Dynamic range: > 130dB

SNR: > 130dB

THD+N: <0.000078%-122dB) @No-wt

Crosstalk: >-123dB

RCA Output Audio Characteristics: Frequency response: 20Hz-20KHz (0.15dB)

Dynamic range:> 129dB

SNR: >129dB

THD+N: <0.00009% (-121d8)@A-WT

Crosstalk: >-122dB

Op-amp Chip: OPA1612

Power Supply: 2 * High-quality, low-noise linear power supply

SSD: Support M.2 NVME 3.0 2280 protocol, up to 8TB * 2 (SSDs aren’t included).

USB-A Port: USB3.0+2

Ethernet: RJ-45(10/100/1000Mbps)|

HDMI ARC: Support up to stereo PCM 192KHz 24Bit|

Analog preamp audio input: XLR(Balanced)1 +RCA2(Unbalanced),| Maximum Gain +10dB Supports ADC acquisition, with a maximum support of 192kHz.

Isolation USB Audio Output: Support up to stereo DSD512, PCM 768KHz 32Bit

Control Method: PSU: AC 110~240V 50/60Hz

Rated Power: 44W|

Dimensions: W 430mmL 310mm* H 117mm

Packing List: Power Cable1, Trigger Cable1, Remote Control1, Antenna3, User Manual*1

SFP Fiber Ethernet: Supports external single-mode single-fiber and single-mode dual-fiber SFP modules (SFP modules need to be purchased separately).

WiFi: WiFi 2.4G + 5G dual band

Playback and DAC Decoding: SupReE 3a to stereo DSD512, PCM

Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, Tuneln Radio, Apple Music.KKBOX WebDAV. UPop

Optical/Coaxial Audio Output: Buoot upto sere PCM 192Kt 2454. When routed through the DSP module, it supports a maximum of stereo PCM 96kHz.

Analog Audio Output: Subwoofer OUT * 2 Support Stereo Mode / Mixer Mode
