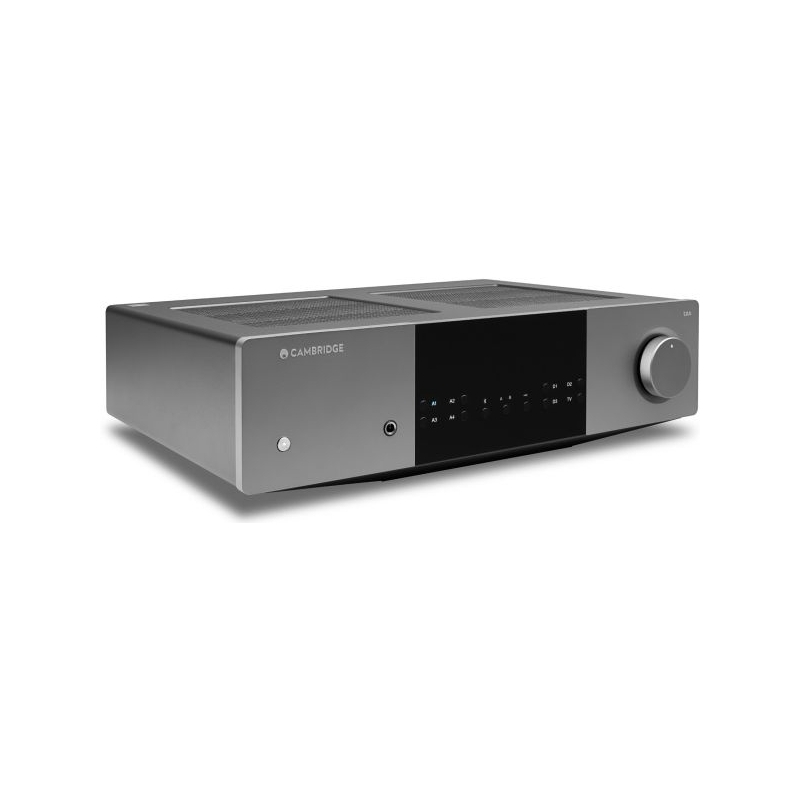

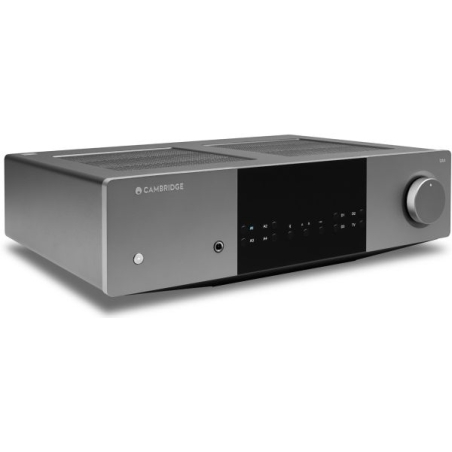

Cambridge Audio EXA 100

Power Output: 100W RMS into 8 Ohms @ <1%THD+N, 155W RMS into 4 Ohms @ 1kHz <1%THD+N

Amplification: Class-A/B

DAC: ES9018K2M

Preamp Mode: Yes

Frequency Response: <3Hz – >40kHz +/-1dB

Toroidal Transformer: Yes

Bi-wiring possible: Yes

Analogue RCA Inputs: 4 pairs

Balanced XLR Input: 1 pair

S/PDIF TOSLINK Input: 2

S/PDIF Coaxial Input: 1

Asynchronous USB Input: USB Type B conforming to USB Audio Class 1 or USB Audio Class 2 (user selectable)

Bluetooth: 5.0 aptX HD

HDMI ARC Input: 1 (eARC compatible)

Preamp Output: RCA pre-out

Headphone Output: Yes

Subwoofer Output: 1 x RCA

Speaker Outputs: Yes

S/PDIF TOSLink Optical: TOSLINK: 16/24-bit 32-96kHz

S/PDIF Coaxial: Coax SPDIF: 16/24-bit 32-192kHz

HDMI eARC: PCM up to 24bit/192kHz

USB Audio: USB Audio Class 1: Up to 24-bit 96kHz (asynchronous) | USB Audio Class 2: Up to 24-bit 384kHz (asynchronous) and up to DSD-256

Bluetooth: 5.0 A2DP/AVRCP supporting SBC, aptX and aptX HD codecs

RS232 Control: Yes

THD (Unweighted): <0.002% 1kHz at 80% of rated power (8 Ohms) | <0.02% 20Hz – 20kHz at 80% of rated power

S/N Ratio (REF 1W): >91 dB

Crosstalk @1kHz: >90

Input Sensitivity: Input A2-A4 (unbalanced) 395mV RMS

Input Impedances: Input A1 (balanced) 100 kOhm Input A2-A4 (unbalanced) 45 kOhm

Power Amp Damping Factor: >160 at 1kHz

Subwoofer Output: 1 x RCA

Max Power Consumption: 1200w

Standby Power Consumption: <0.5W

Dimensions (W x H x D): 115 x 430 x 341mm
